Hemorrhoids Handle

Category:Hemorrhoids Handle

Product Details

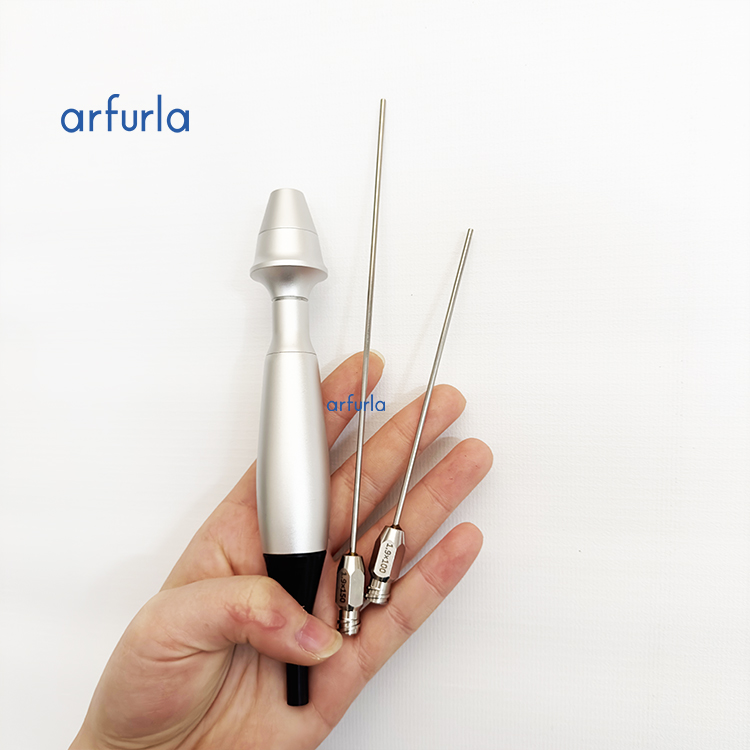

The hemorrhoids handle with two needles

This hemorrhoids handle is designed with a clear focus on specialized applications. It functions exclusively with radial optical fibers installed. This targeted design allows it to more precisely meet the unique needs of hemorrhoids treatment.

It also offers excellent flexibility in fiber specifications, accepting any radial or tapered optical fiber with a diameter of 400µm or 600µm. Optical fibers of different diameters have their own specific applications. The relatively thin 400µm fiber allows for more precise targeting of the target area and minimizes impact on surrounding tissue when treating more concealed and smaller hemorrhoidal lesions. The slightly larger 600µm fiber, on the other hand, improves energy coverage and enhances treatment efficiency when treating more extensive hemorrhoidal lesions. This adaptability to specific fiber types and specifications allows the hemorrhoids handpiece to flexibly select the appropriate fiber for treatment based on the patient’s specific condition and lesion characteristics. This ensures precise treatment while addressing the needs of diverse conditions, providing reliable equipment support for the smooth implementation of hemorrhoids surgery.

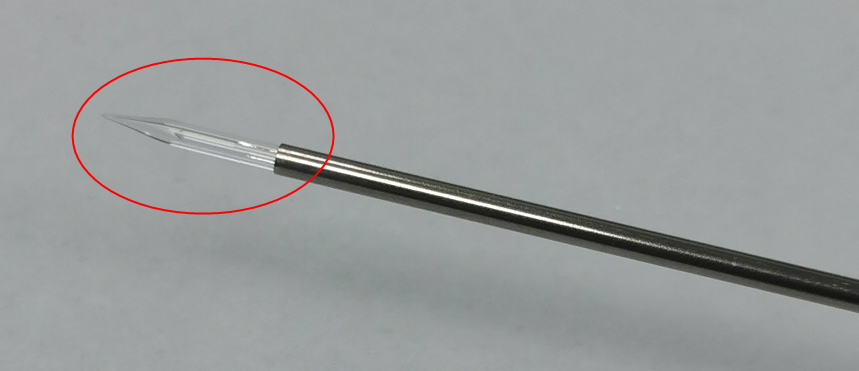

When you put the fiber inside of the needle, please do it like the photo we showed you, do not let the whole glass tip out of the needle, only half outside.

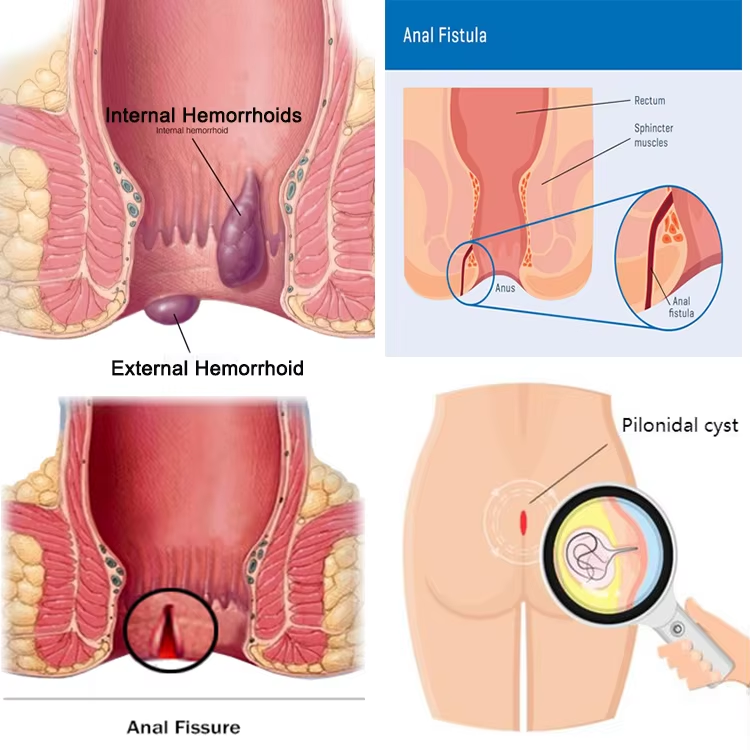

Indications

Laser Hemorrhoido Plasty – for hemorrhoids

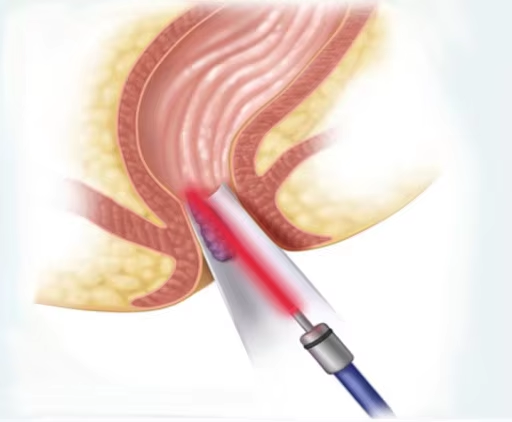

LHP is used as a gentle therapy for advanced hemorrhoids under appropriate anesthesia and allows interstitial laser coagulation of both segmental and circular hemorrhoidal nodes. As the energy of the laser is inserted centrally into the hemorrhoidal node, the hemorrhoid can be treated according to its size without causing any damage to the anoderm or mucosa. No foreign materials (clamps) are needed, and LHP is not associated with any risk of stenosis. Healing is excellent because, unlike conventional surgeries, there are no incisions or sutures.

Fistula-tract Laser Closure – for anal fistulas

FiLaC treats the fistula tract as gently as possible. The flexible, radially emitting FiLaC fiber is precisely placed using a pilot beam and delivers the energy into the course of the fistula tract. The efficient radiation concept of the FiLaC fiber makes optimal use of the applied energy.

With minimally invasive laser therapy, the sphincter muscle is not damaged during the treatment of anal fistulas: all areas of the muscle are preserved to a maximum and incontinence is avoided.

Sinus Pilonidalis treatment – for sinus pilonidalis

The newest field of application for FiLaC is the treatment of sinus pilonidalis, or pilonidal cysts during the so called SiLaC treatment. Here, the laser therapie achieves excellent healing, minimal wound surfaces, and convincing cosmetic results.

Specification

Fiber install

400um/600um radial fiber

Material

Stainless steel

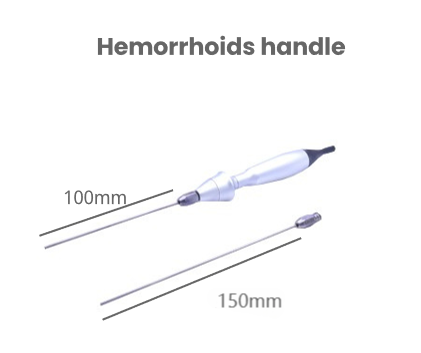

Size of needle

Outer diameter: 2.0mm

Length: 100mm, 150mm
