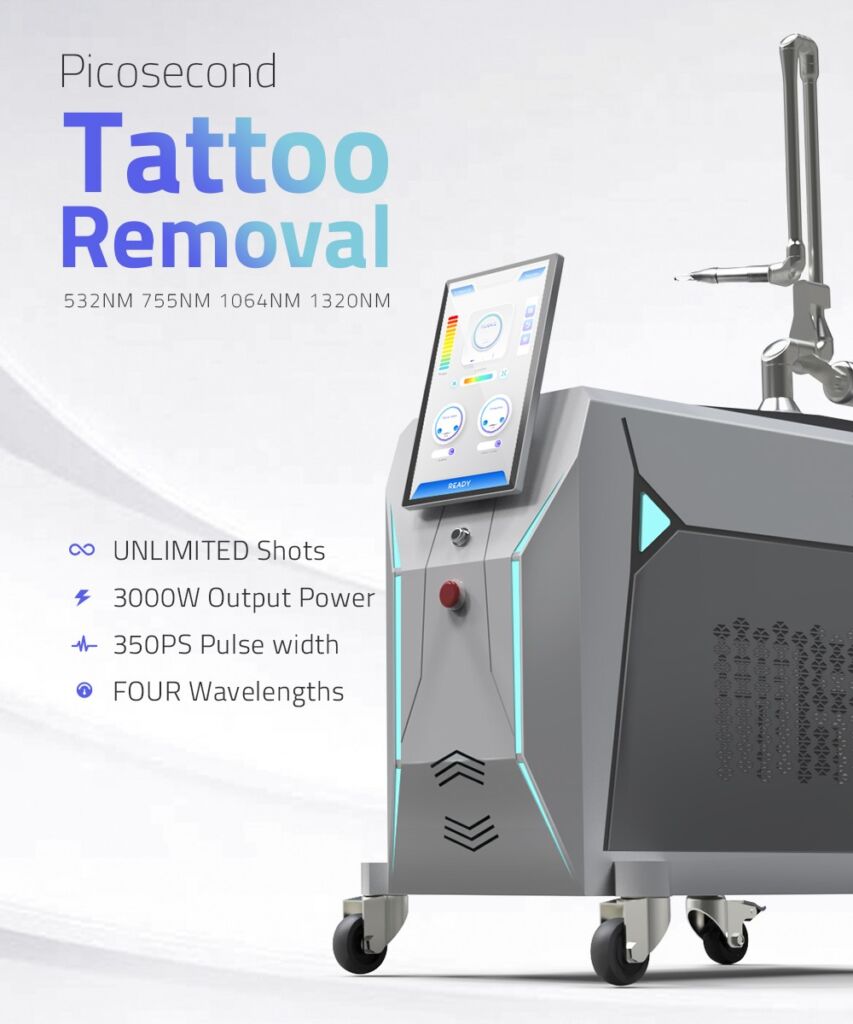

Picosecond Q Swtich Nd Yag Laser 532 1064
Category：Picosecond Q Swtich Tattoo Removal Laser
Product Details
Picosecond Q Swtich Nd Yag Laser 532nm 1064nm 1320nm Tattoo/Spots Removal Skin Rejuvenation
For all colors of tattoo removal and pigment removal, skin tightening and rejuvenation, vascular removal and hair removal
The principle of Q-switched 532nm and 1064nm lasers is the theory of selective photothermolysis, which is the foundation of all treatments. This allows the laser to precisely target pigment particles with energy within an extremely short time (nanoseconds) without damaging surrounding normal tissue. This is the Q swtich nd yag laser technology we usually say.
1064nm: Deeper penetration depth, used for treating nevus of Ota, removing dark tattoos (black, blue), hair removal (targeting hair follicle melanin), and skin rejuvenation.
532nm: Shallower penetration depth, mainly used for treating superficial pigmented lesions (such as freckles, café-au-lait spots), removing red/yellow tattoos, and treating vascular lesions (such as telangiectasia).
The theory on pigment removal is that The pulse duration (pulse width) of a Q-switched laser is extremely short (nanosecond level), releasing energy instantaneously. This causes the target pigment particles to heat up rapidly, resulting in “thermal expansion-mechanical explosion,” shattering them into extremely small fragments.
Subsequently, the body’s immune system (mainly macrophages) gradually engulfs and eliminates these fragmented pigment particles as “metabolic waste,” expelling them from the body through the lymphatic system, thus gradually fading and eliminating the pigmentation.

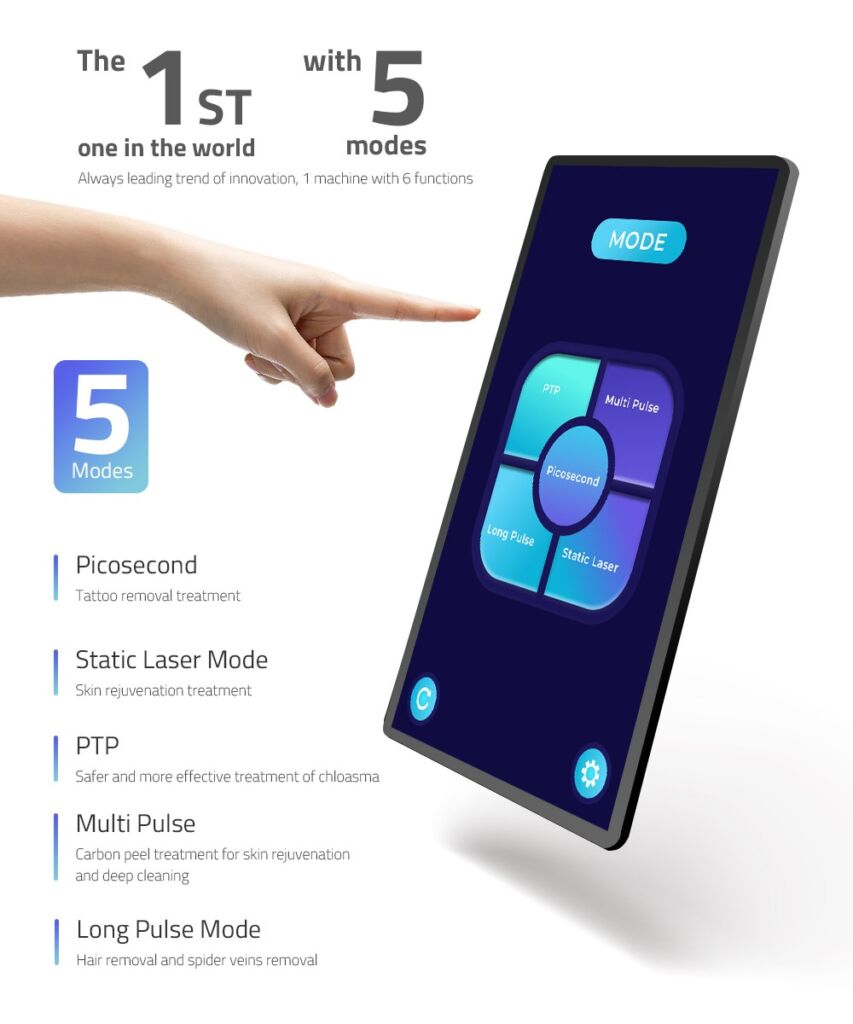

5 Working Modes for option:
Picosecond: All colors of Tattoo removal treatment and pigment removal, Melasma, age spots, coffee spots, Ota moles, removal of pigmentation
Static Laser Mode: Skin rejuvenation treatment, skin tightening, skin problem treatments
PTP: Safer and more effective treatment of chloasma
Multi Pulse: Carbon peel treatment for skin rejuvenation for skin rejuvenation and deep cleaning
Long Pulse Mode：Hair removal and spider veins removal
Technology Highlight:
Energy stability Q Switch 1064nm, uniform clinical efficacy by minimizing damage to surrounding tissue
Korea Imported Genesis mode, Korea imported genesis mode long pulse technology makes energy spreading evenly and softer.

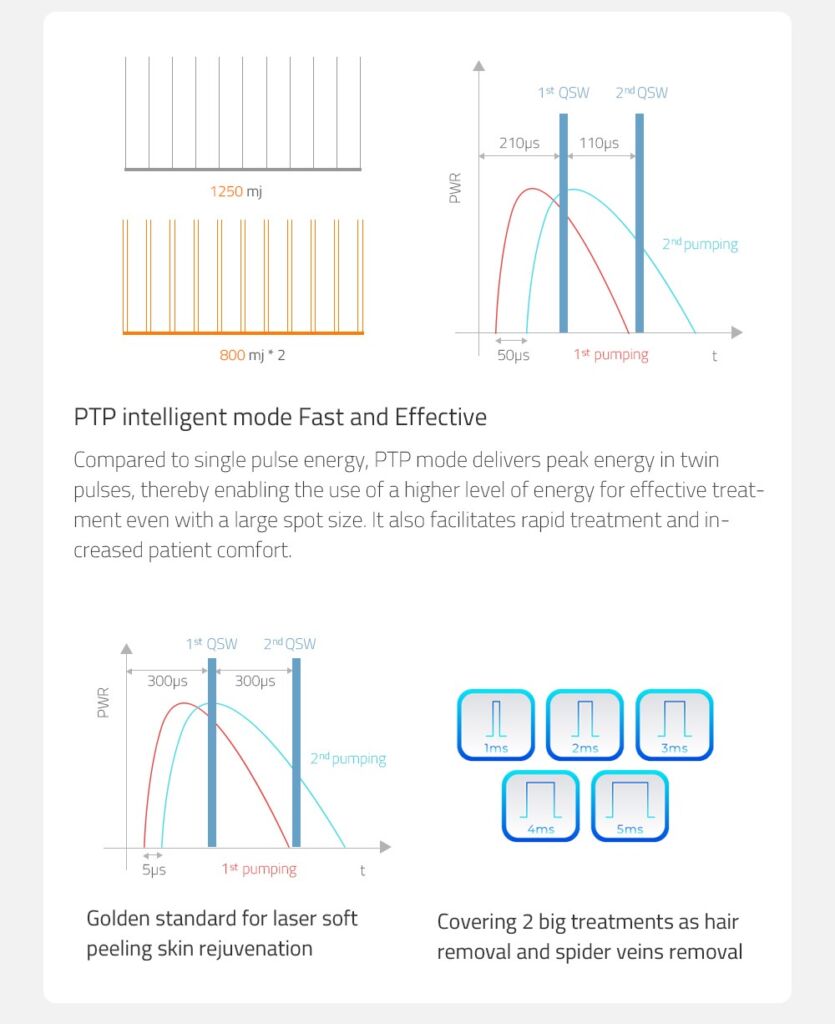

PTP Intelligent mode Fast and Effective
Compared to single pulse energy, PTP mode delivers peak energy in twin pulses, thereby enabling the use of a higher level of energy for effective treatment even with a large sport size. It also facilitates rapid treatment and increased patient comfort.
How Laser Tattoo Removal Works?
The picosecond laser has become the gold standard treatment for across all colors of tattoo removal.
By creating a very short high energy pulse, the tattoo ink is thermo-acoustically broken up into minute particles that the body can readily absorb. As the laser attacks the tattoo, a light grey ”frosting” appears on the tattoo, a signal that the appropriate energy was applied and the removal process will begin.
Superficial lesions can be treated most effectively with the 532nm wavelength, while the 1064nm wavelength can be used to target deeper lesions.
Pigment destruction can take place without ablating the skin a unique feature that provide maximum safety with outstanding results.
Top Hat Beam Profile
The uniform top hat shape of the beam profile means it can deliver a uniform and accurate high quality beam to the target area via its compact dual chamber, guaranteeing safety and efficacy.

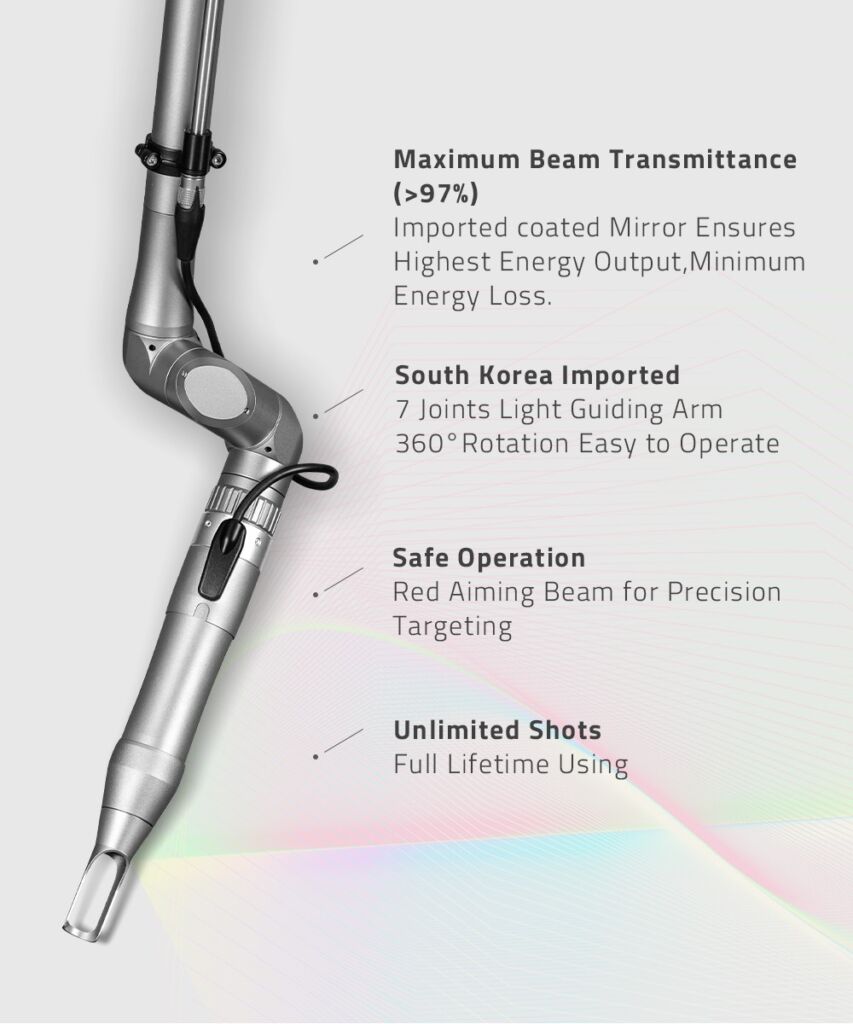

The advantage of our laser arm:
Maximum Beam Transmittance(>97%):Imported Coated Mirror Ensures Highest Energy Output, Minimum Energy Loss.
South Korea Imported: 7 Joints Light Guiding Arm 360 degree Rotation Easy to Operate.
Safe Operation: Red Aiming Beam for Precision Targeting
Unlimited Shots: Full Lifetime Using
Zoom Handpiece:
Adjustable from 2 to 10 mm in 1mm increments
Indications: Epidermal and dermal pigmentation
1064nm and 532nm :For Dark Color Tattoo And Pigmentation
Honeycomb: Break The Melanin, More Dispersed
A Revolution Whitening, For Skin Rejuvenation, Shrink Pores
Rod and Lamp:
Imported from Germany Heraeus Lamp Real 8mm Laser Rod Made.
Stable and reliable light output Imported German laser lamp Compact structure, Small laser volume

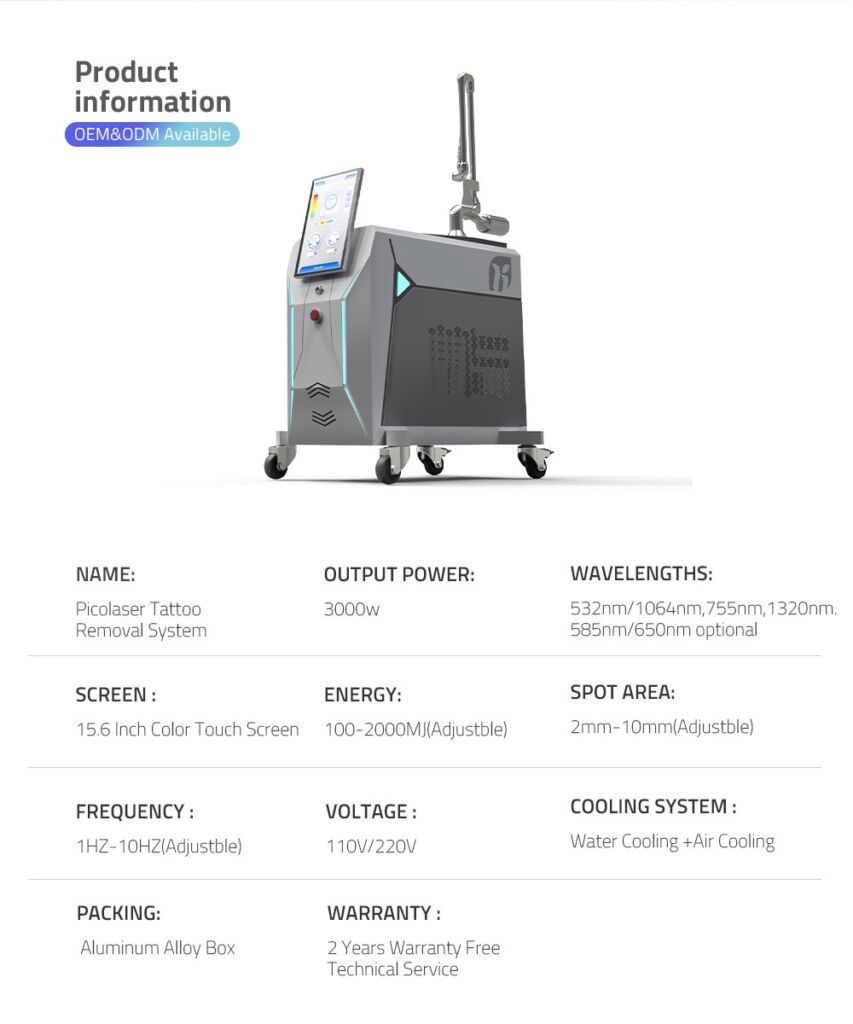

Technical Parameters:
Name | Output power | Wavelengths |
Picosecond laser tattoo removal system | 3000W | 532nm 1064nm 1320nm |
Screen | Energy | Spot area |
15.6 inch color touch screen | 100-2000mj (Adjustable) | 2mm-10mm(Adjustable) |
Frequency | Voltage | Cooling system |
1HZ-10HZ(Adjustable) | 110V/220V | Water cooling+Air cooling |
Packing | Warranty |
|
Aluminum Alloy Box | 2 years warranty free technical support |
|
- Q-switched 1064nm Laser
Target Pigments: Black, dark blue, and navy blue pigments.
Absorption Characteristics: The 1064nm wavelength is strongly absorbed by melanin, and its penetration depth is relatively deep.
Main Applications:
Pigmentation Removal:Removal of nevus of Ota, acquired nevus-like pigmentation: Deep dermal pigment cells make 1064nm the preferred treatment. Also suitable for deep freckles and café-au-lait spots.
Tattoo Removal:Professional tattoos: Usually contain large amounts of black and blue ink.
Eyebrow and Eyeliner Tattooing:Usually black or brownish-black.
Skin Skin Improvement and Rejuvenation:Used for overall treatment of facial melanin, brightening skin tone.
- Q-switched 532nm Laser
Target Pigments: Red, orange, yellow, and brown pigments.
Absorption Characteristics: 532nm green light is strongly absorbed by oxyhemoglobin and red and yellow pigments, but its penetration depth is relatively shallow.
Main applications:
Eye blemish removal: Freckles, nevus: These epidermal brown spots respond extremely well to 532nm.
Some superficial café-au-lait spots.
Tattoo removal: Amateur red tattoos, decorative red/yellow tattoos. Red lip liner.
Treatment of vascular lesions: Such as telangiectasia (rosacea), because 532nm is also well absorbed by hemoglobin.
As we all know about the “Black Doll” laser skin rejuvenation technique. This technology was incredibly popular a few years ago and was touted as the best skin rejuvenation technology among laser treatments. It involves applying black carbon powder to the client’s face, using a “micro-explosion” effect to cleanse, shrink pores, and stimulate collagen regeneration, thereby achieving skin rejuvenation, whitening, and improved skin texture.
However, we’ve upgraded this technology. Our current technique, the “Porcelain Doll,” uses static light, so the carbon powder step is unnecessary.
The “Porcelain Doll” is a medical aesthetic procedure that uses low-energy, high-frequency lasers to non-invasive target the deep layers of the skin. Through photomodulation, it stimulates cell activity and selectively destroys melanin, achieving whitening, brightening, and skin rejuvenation effects.
The core difference between it and the “Black Doll” is that it doesn’t require carbon powder as a medium; the laser interacts directly and non-invasive with the skin tissue.
This is the core and unique principle of the “Porcelain Doll.” It refers to using low-energy lasers to irradiate cells, acting like a “regulator,” activating mitochondria within the cells, thereby enhancing cell metabolism and activity, rather than directly damaging tissue like high-energy lasers.
Our machine is actively Q-switched, the spot size is already 10mm. Only ordinary ND YAG machines are equipped with a 1320nm head because the spot size is too small; using the 1320nm head would enlarge the spot size and reduce the energy density. Our system’s energy and spot size are sufficient, so generally, the 1320nm head is not needed. The “Porcelain Doll” laser treatment is called “static laser” in our system, specifically for laser skin rejuvenation, using a 1064nm wavelength and head.
Our system provides suggested parameters to make it easy for every client to understand and operate, making treatment very convenient. So you don’t need to worry about anything. We hope this information is helpful.
